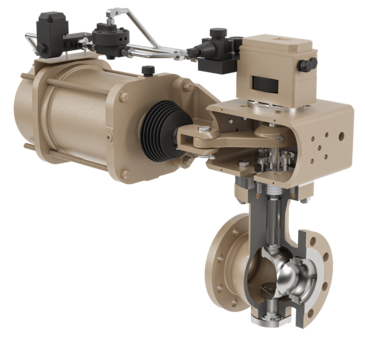

82.7-02 - pneumatic - DIN
Rotary plug valve
VALVE STYLE
Rotary plug valve
USAGE
- Throttling service
- On/off service
- Cryogenic service
- Pressure swing adsorption (PSA)
VERSION
DIN
MEDIUM TEMPERATURE
-196
to 500 °C /
-320.8
to
932 °F
SUPPLY
Pneumatic
VALVE SIZE
DN 25
to
DN 350
PRESSURE RATING
PN 10
to
PN 40
LINING
without
Special features
- Pneumatic control valve with double-eccentric design
Accessories
- - - -
Options
- Low-emissions packing acc. to TA Luft/ ISO 15848
- Bushing seals for trunnion bearing and shaft
- Various seat factors (Standard: F1; F0,6; F0,4; F0,25)
- Insulating section IT2 for cryogenic media (-100 to -196 °C)
- Insulating section IT1 for high and low temperature (-40 to -100 °C and 350 to 500 °C)
- Double stuffing box DSB with or without test connection
- Heating jacket HZM from DN 150
- Cleaning connections
- Noise reduction for gases, steam and liquids
82.7-02 - pneumatic - DIN can be combinated with the following actuations:
Special features:
- Very long travel
- Torque up to 1000 Nm
- Very fine control
Special features:
- Single acting
Special features:
- With one or two central return springs
- 330 or 735 cm² diaphragm area
- Spring torque up to 146 Nm
Special features:
- With one or two central return springs
- 1636 or 3447 cm² diaphragm area
- Spring torque up to 1976 Nm
Special features:
- With several return springs
- 1636 or 3447 cm² diaphragm area
- Spring torque up to 8247 Nm
Information
Support
EB 005.035
Valve Series 82, 72, 73in combination with a pneumatic piston actuator (e.g., Type AT, BR31a etc.)[EN][DE]EB 005.022
Valve Series 82, 72, 73in combination with a pneumatic diaphragm actuator (e.g., Type R, MD, MN, MZ)[EN][DE]EB 005.031
Valve Series 72, 73, 82 in combination with actuator Type MZSupport/suspension of the actuator & control valve on site[EN][DE]EB 005.032
Valve Series 72, 73, 82 in combination with actuator Type MDSupport/suspension of the actuator & control valve on site[EN][DE]EB 005.050
Drehkegelventile mit Zahnstangen-Ritzel-Antrieben (Doppelkolben), z. B. Typ AT, BR31a etc.Ventil transportieren und heben (Innerbetrieblicher Transport)[DE]EB 005.057
Drehkegelventile mit Antrieb Typ RVentil transportieren und heben (Innerbetrieblicher Transport)[DE]EB 005.036
Lifting Instructions for Valves with mounted Actuator Type MZ / MD / MN
[EN][DE]EB 005.045
Storage of VETEC products
Rotary Plug Valves Series 62, 72, 73, 82 with Actuators e.g. Type R, MComponents (e.g. silencer), Spare Parts, Elastomers[EN][DE]
