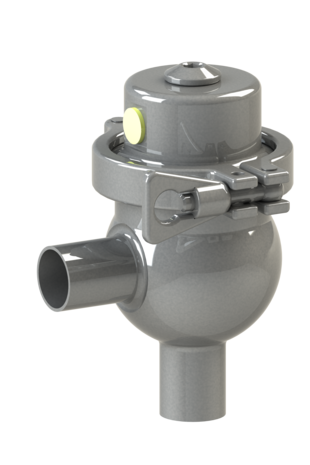

2371-00 - ANSI
Excess pressure valve with diaphragm
USAGE
- Pressure control
MEDIUM
Water and other liquids
Gases
Air and non-flammable gases
VERSION
ANSI
MEDIUM TEMPERATURE
0
to 160 °C /
32
to
320 °F
VALVE SIZE
NPS ½
to
NPS 2
PRESSURE RATING
Class 150
to
Class 150
FUNCTION
- Excess pressure valve
APPLICATION
- The valve opens when the upstream pressure rises
Special features
- Excess pressure valve with diaphragm
- Pneumatic set point adjustment
- FDA-compliant materials
- Cavity-free angle-style body
- Leakage monitoring of diaphragm
- Optionally, welding ends, threaded ends, clamp connections, or flanges
Accessories
- - - -
Options
- Stem locking for CIP or SIP
